Home / Elcometer / Blast Equipment / Blast Nozzles / Venturi Blast Nozzles / Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket

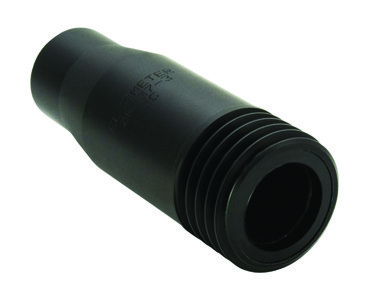

Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket - Image 2

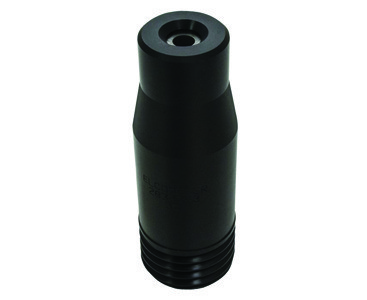

Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket - Image 3

Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket

Built to be impact resistant and long wearing, the Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket is ideal for use with aggressive abrasives. Supplied with a rubber gasket, the nozzle’s acetal jacket protects the tungsten carbide liner, prolonging it’s lifespan whilst keeping the nozzle lightweight, causing less operator strain and increasing productivity.

Category: Blast Equipment, Blast Nozzles, Elcometer, Venturi Blast Nozzles
  • Description
  • Reviews (0)

Description

Built to be impact resistant and long wearing, the Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket is ideal for use with aggressive abrasives. Supplied with a rubber gasket, the nozzle’s acetal jacket protects the tungsten carbide liner, prolonging it’s lifespan whilst keeping the nozzle lightweight, causing less operator strain and increasing productivity.

Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.3
Orifice Diameter :4.8mm (3/16″)
Length :140mm (5.51″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :3
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.4
Orifice Diameter :6.35mm (1/4″)
Length :140mm (5.51″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :4
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.5
Orifice Diameter :8mm (5/16″)
Length :150mm (5.9″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :5
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.6
Orifice Diameter :9.5mm (3/8″)
Length :175mm (6.89″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :6
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.7
Orifice Diameter :11mm (7/16″)
Length :205mm (8.07″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :7
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.8
Orifice Diameter :12.5mm (1/2″)
Length :235mm (9.25″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :8
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.10
Orifice Diameter :16mm (5/8″)
Length :235mm (9.25″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :10
Tungsten Carbide Venturi Blast Nozzle with Acetal Jacket No.12
Orifice Diameter :19mm (3/4″)
Length :235mm (9.25″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :12
