Elcometer 215 Oven Data Logger

Clear

Description

The Elcometer 215 is the easy to use oven temperature profile solution, used to measure and store the temperature profiles of both the sample and the oven during the cure process.

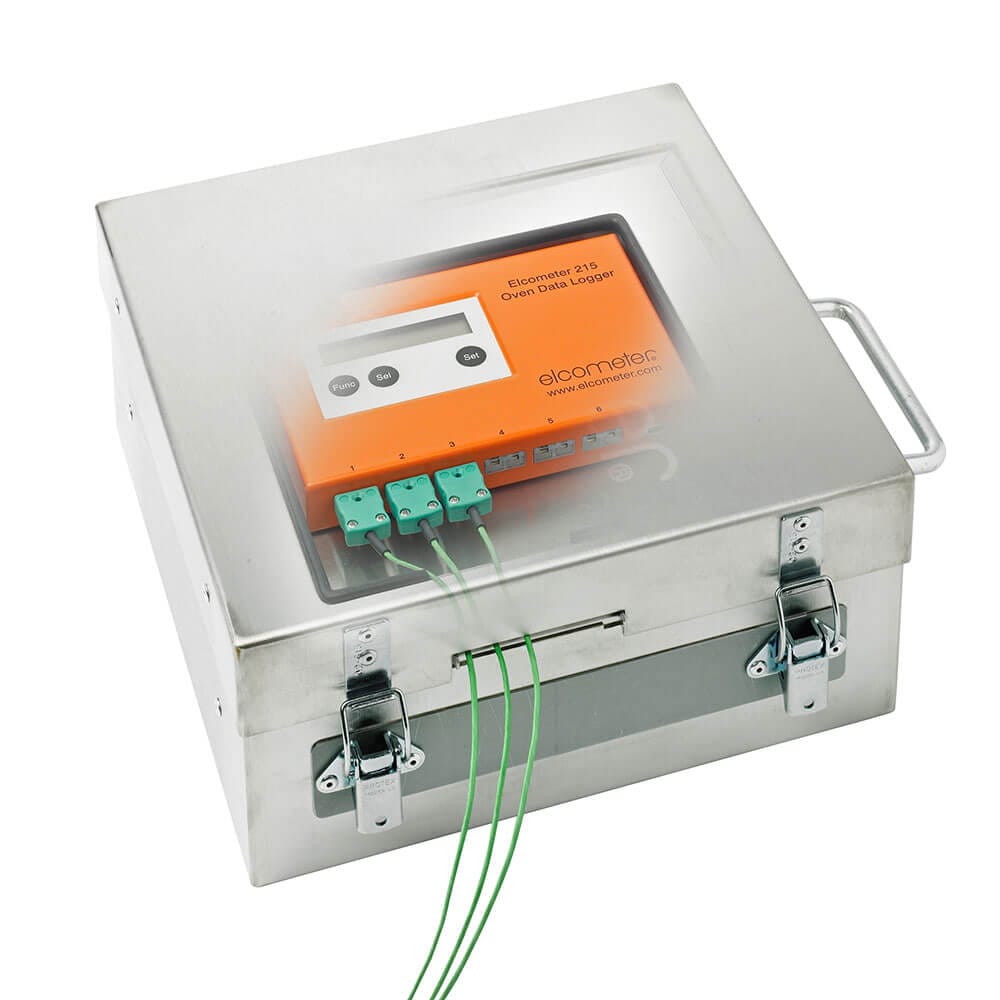

Standard Thermal Barrier Kit

With thermal barrier – ideal for single runs

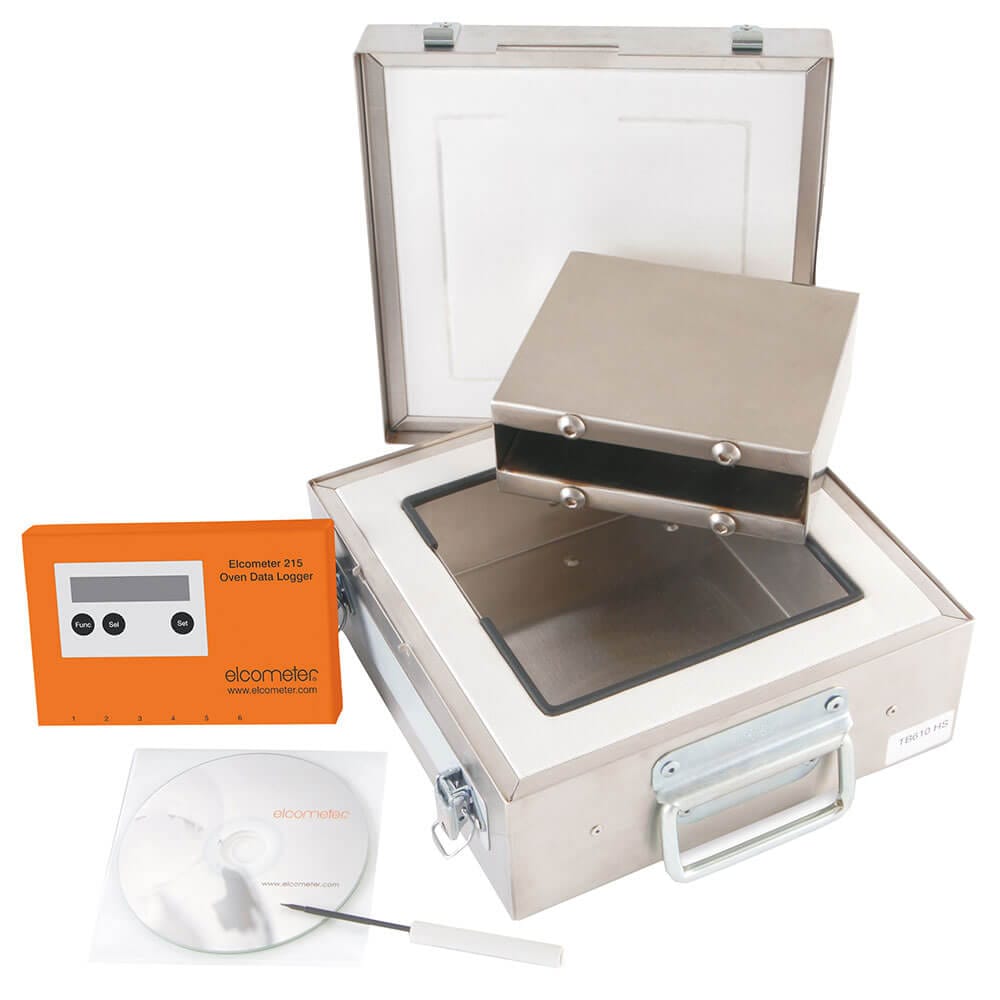

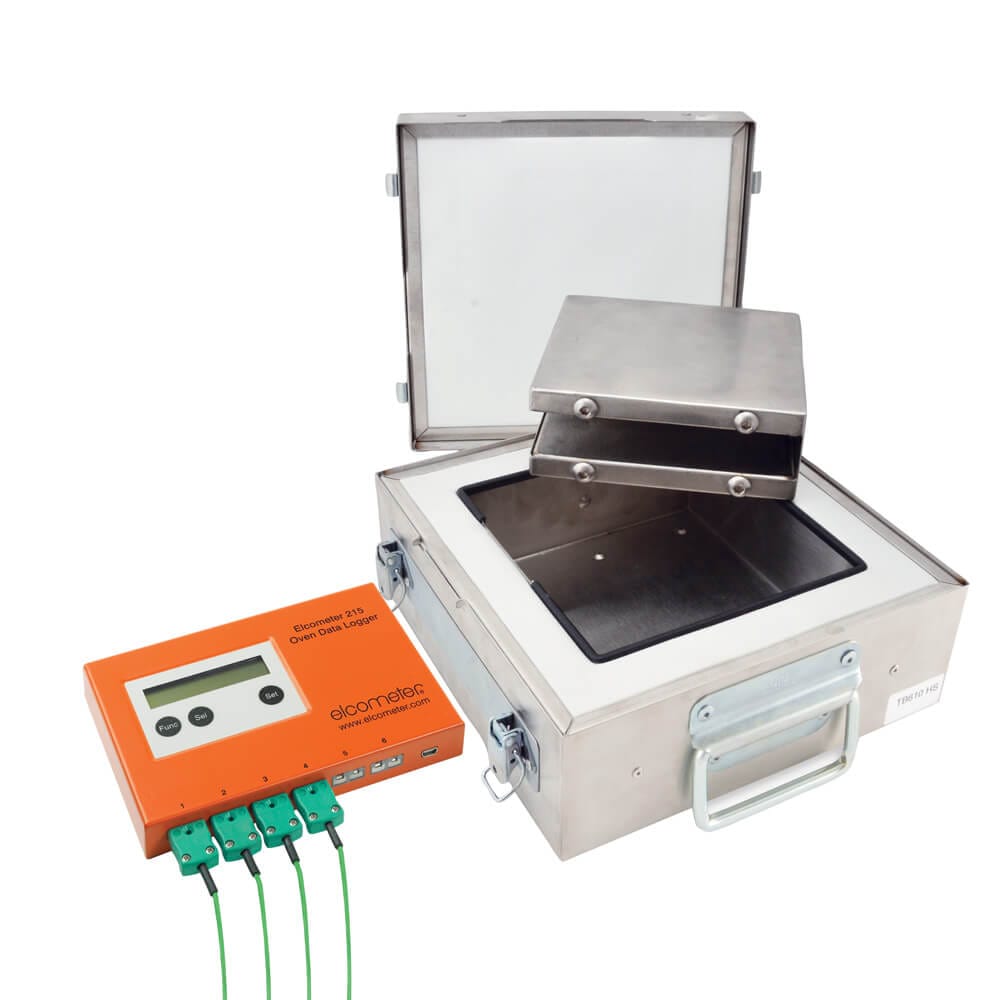

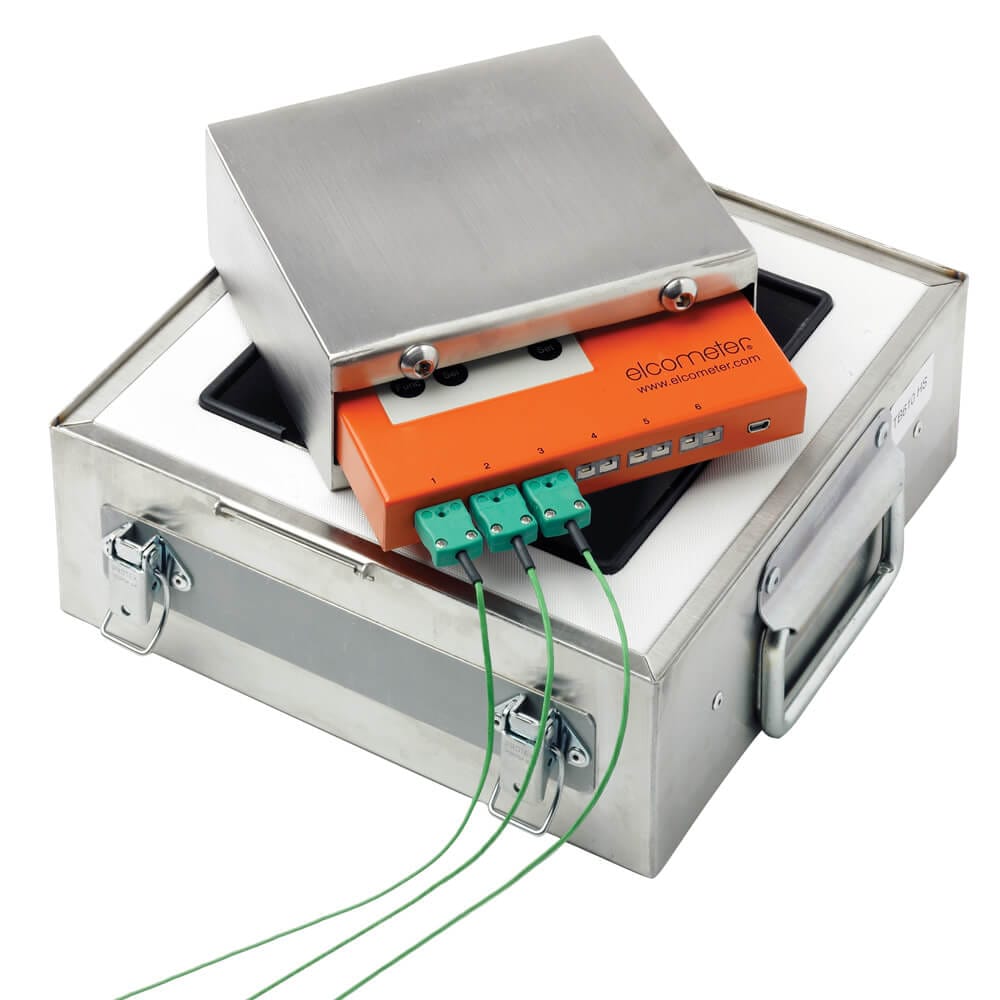

High Temperature Barrier Kit

Thermal barrier & heat sinks for longer time at temperature

  • Memory stores up to 260,000 readings
  • Ideal for testing for powder or liquid coatings in batch or conveyor ovens
  • Variable measurement interval, date, time, °C / °F
  • High temperature resistant teflon coated probe cables are easy to clean after each run
  • Quick display shows maximum temperature, Cure-Index figure and pass/fail for each probe
  • Measure up to 6 different temperatures at one time
  • Ideal in situations where powder coated thickness is inconsistent
  • Start and stop logging at a pre-set temperature
  • Large menu-driven display for easy operation
  • Print full colour report directly to any HP printer
  • USB data output to ElcoMaster® software and combine with other key inspection measurements



Elcometer 215 Temperature Probes

A wide range of K-Type temperature probes are available with 1.5m (4’9”), 3m (9’ 8”) or 6m (19’ 7”) cable lengths. The Elcometer 215 can be used with a combination of up to 6 probes simultaneously and feature:

  • Perfect contact between probe and surface
  • Low mass and optimised shape to avoid influence on temperature of sample
  • Extremely strong, highly flexible and easy to clean Teflon® coated cables

Additional information

Dimensions 24.5 × 24.5 × 11.5 cm
Gauge Measurement Range

-200°C to 1300°C (-328°F to 2372°F)

Gauge Operating Temperature

-30°C to 65°C (-22°F to 149°F) without thermal barriers

Accuracy

5°C to 500°C: ±0.5°C (41°F to 932°F: ±1.0°F)
>500°C: ±1.0°C (> 932°F: ±2.0°F)

Resolution

0.1°C (0.2°F)

Number of Channels

6

Measuring Intervals

Adjustable from 8 per second to 1 per hour

Memory

260,000 readings or 8 production runs

Data Output

USB

Power Supply

2 x AA batteries

Gauge Dimensions

153 x 101 x 23mm (6 x 4 x 0.9")

Gauge Weight

450g (15.8oz)

Thermal Characteristics

Standard Thermal Barrier Kit :
100°C (212°F) for 140 minutes
150°C (302°F) for 80 minutes
200°C (392°F) for 60 minutes
250°C (482°F) for 50 minutes

High Temperature Thermal Barrier Kit :
100°C (212°F) for 340 minutes
150°C (302°F) for 195 minutes
200°C (392°F) for 130 minutes
250°C (482°F) for 100 minutes
300°C (572°F) for 30 minutes
