Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket

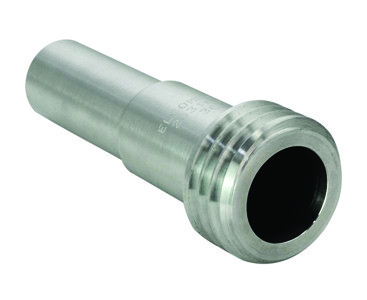

Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket - Image 2

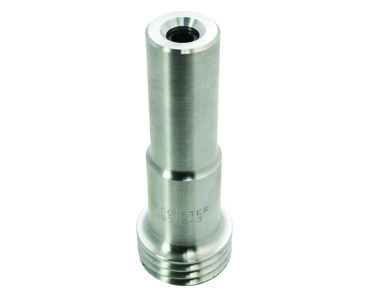

Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket - Image 3

Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket

Designed to create a wide blast pattern and greatly increase velocity, the Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket is ideal for blasting large surfaces. Supplied with a rubber gasket, this general purpose blast nozzle features a tungsten carbide insert and aluminium jacket providing durability and toughness.

Category: Blast Equipment, Blast Nozzles, Elcometer, Venturi Blast Nozzles
  • Description
  • Reviews (0)

Description

Designed to create a wide blast pattern and greatly increase velocity, the Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket is ideal for blasting large surfaces. Supplied with a rubber gasket, this general purpose blast nozzle features a tungsten carbide insert and aluminium jacket providing durability and toughness.

Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.3
Orifice Diameter :4.8mm (3/16″)
Length :140mm (5.51″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :3
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.4
Orifice Diameter :6.35mm (1/4″)
Length :140mm (5.51″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :4
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.5
Orifice Diameter :8mm (5/16″)
Length :150mm (5.9″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :5
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.6
Orifice Diameter :9.5mm (3/8″)
Length :175mm (6.89″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :6
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.7
Orifice Diameter :11mm (7/16″)
Length :205mm (8.07″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :7
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.8
Orifice Diameter :12.5mm (1/2″)
Length :235mm (9.25″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :8
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.10
Orifice Diameter :16mm (5/8″)
Length :235mm (9.25″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :10
Tungsten Carbide Venturi Blast Nozzle with Aluminium Jacket No.12
Orifice Diameter :19mm (3/4″)
Length :235mm (9.25″)
Entry Diameter :32mm (1.26″)
Thread Type :2″ (51mm) Contractor
Nozzle Number :12
