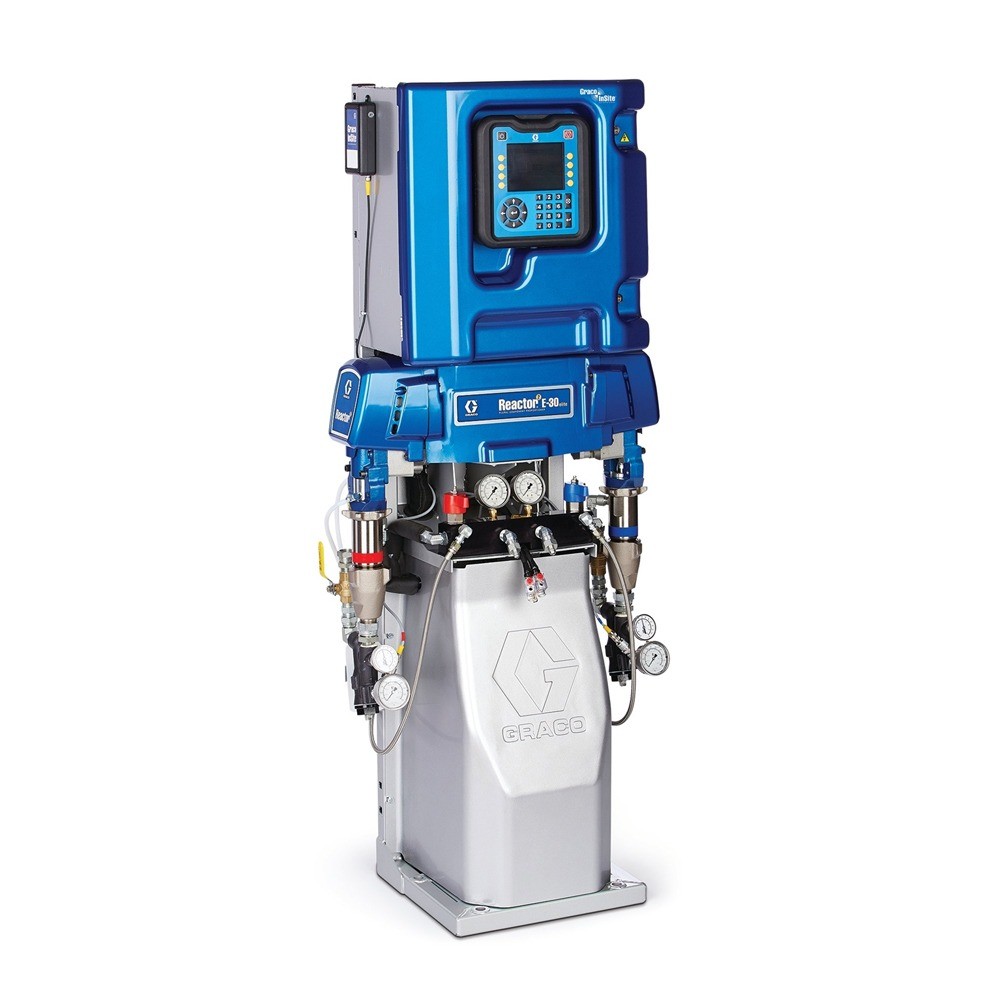

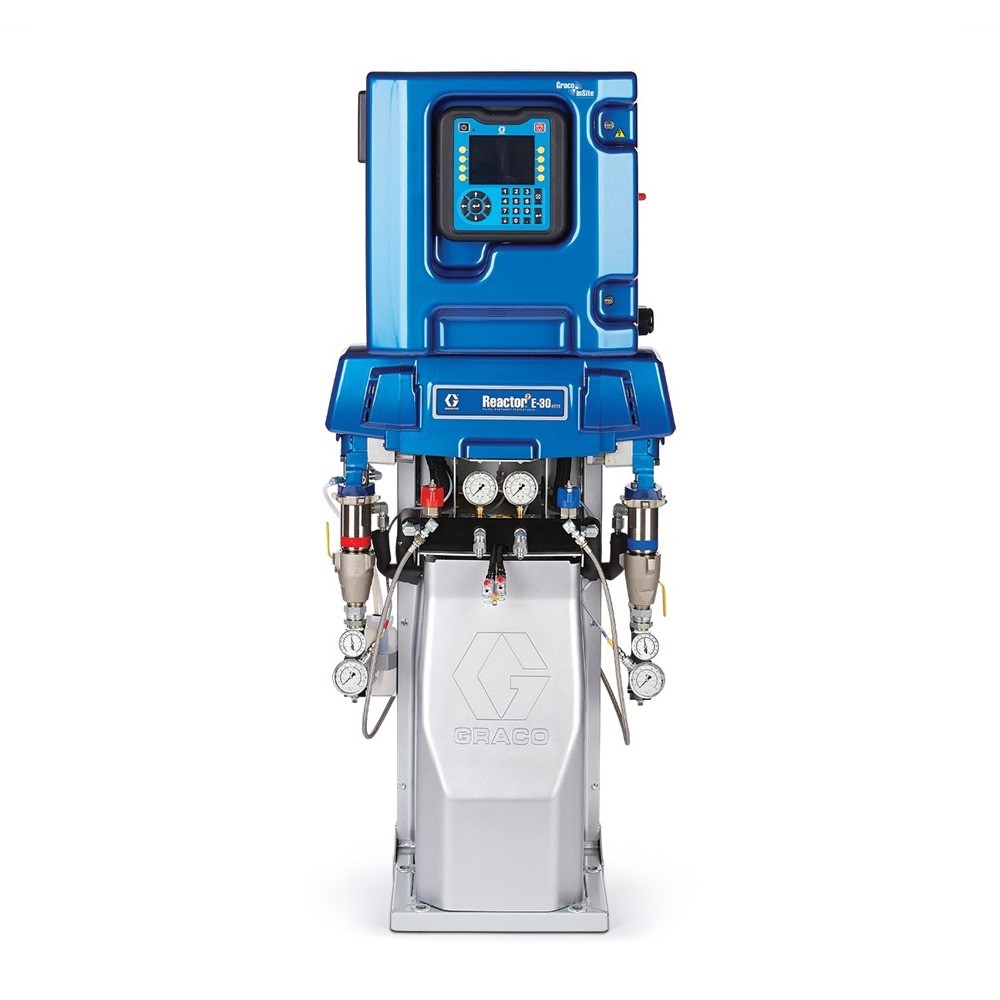

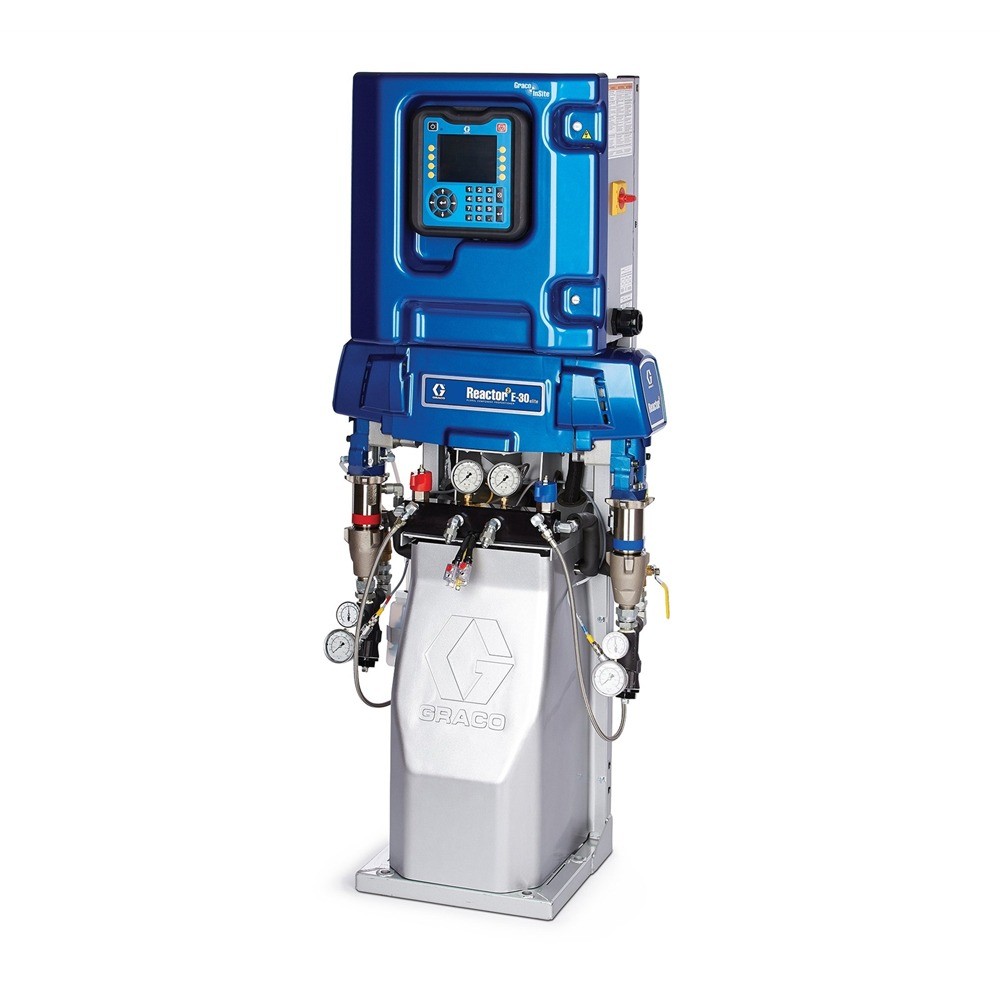

Reactor 2 E-30

The Reactor 2 E-30 electric spray foam machine provides next-gen technology for spray foam insulation. Each feature on the E-30 was strategically designed for your business, including software and hardware enhancements for better spray performance, remote access to controls, and unmatched jobsite data.

Description

REVOLUTIONIZE THE WAY YOU RUN YOUR BUSINESS.

  • Fully compatible with the Reactor App
  • Transmits real-time job activity you can view on your smart phone, tablet or computer
  • Easy to reach, conveniently-placed electronics
  • Smooth, consistent spray performance similar to hydraulic systems

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Next generation technology for spray foam insulation and polyurea.

  • Reactor 2 E-30 gives you:

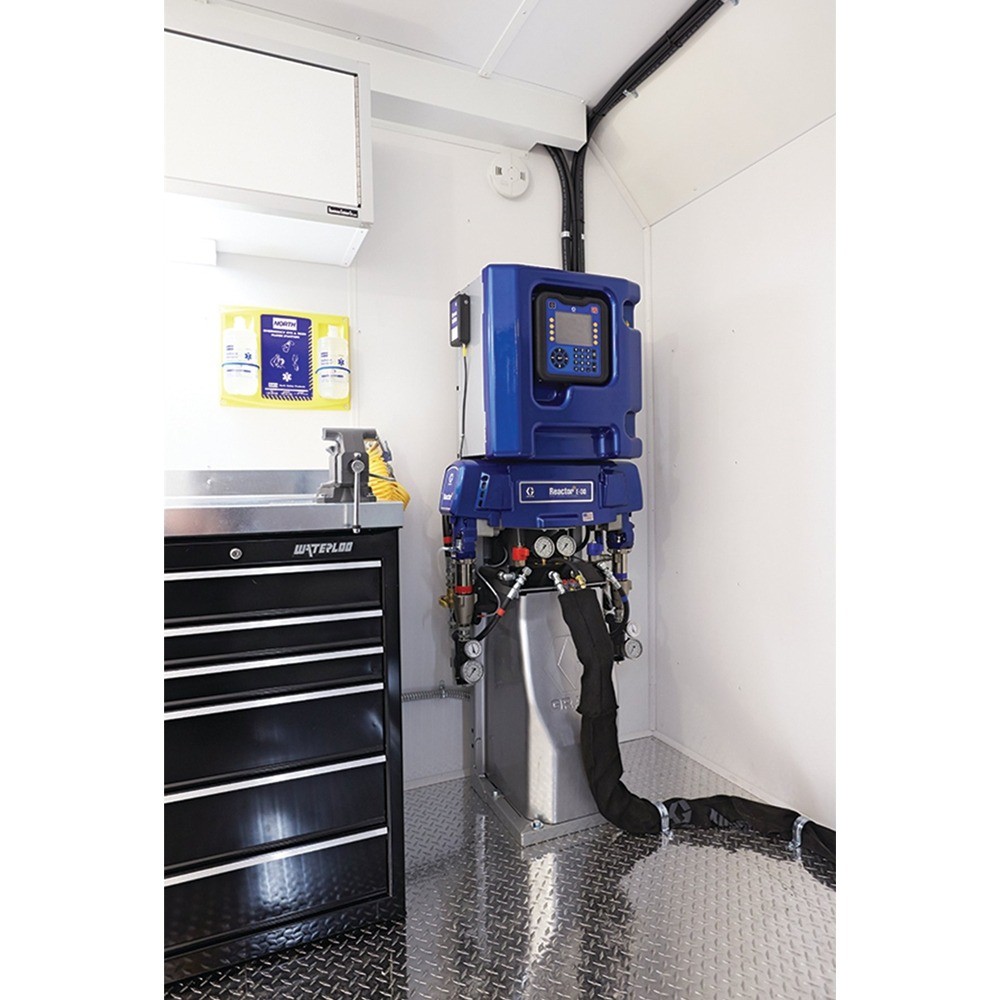

    • Compact footprint – more room in your spray rig
    • Ergonomic design – easier to service
    • Advanced control modules
    • Better spraying performance compared to traditional electric Reactor systems
    • Troubleshooting made quick and easy with QR codes
  • Graco InSite™ gives you:
    • Better control – manage your spray foam or polyurea business wherever you are
    • Better documentation – automatically collect job log data and spray parameters – lets you confirm the job was sprayed to specifications
    • Better fleet and crew management
    • Better cost containment and forecasting
    • Graco InSite comes standard on all Elite models of Reactor 2
  • Advanced control technology
    • Tracks, monitors and saves project data
    • Data can be saved and downloaded onto a USB drive
    • Stores up to 24 chemical recipes
    • Drum level indicators
  • Graco InSite Remote Reporting Technology
    • Transmits real-time job activity you can view on your smart phone, tablet or computer
    • Standard on Elite models
  • Quick and easy troubleshooting thanks to QR code shortcuts
    • Results in less downtime
  • Easy to reach, conveniently-placed electronics
  • Advanced control modules
    • Handles power fluctuations
  • Sacrificial surge protector
    • Protects your electronics against excessive power spikes
  • Smooth, consistent spray performance – similar to hydraulic systems
  • Three-year warranty
    • Covers user display module, control modules and electric motor
    • One of the best in the industry

Additional information

Dimensions 38.1 × 66.8 × 160 cm
Amperage (A)

35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)

Application

Spray Foam

Compatible Material

Plural Components

Component Type

Two Component

Flush Type

Solvent

Frequency (Hz)

50/60

Material Application

Polyurethane Foam

Maximum Flow Rate (kg/min)

13.61

Maximum Fluid Temperature (°C)

88

Maximum Hose Length (m)

94.5

Maximum Mix Ratio

1:1

Maximum Working Pressure (Mpa | bar | kPa)

14, 140, 14000

Power Rating (HP | W | kW)

20.52, 15300, 15.3

Power Source

Electric

Resin Inlet Size (cm)

1.905

Resin Inlet Thread Gender

Female

Resin Inlet Thread Type

NPSM

Sound Pressure Level (dB(A))

87.3

Wetted Material

Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, UHMWPE
