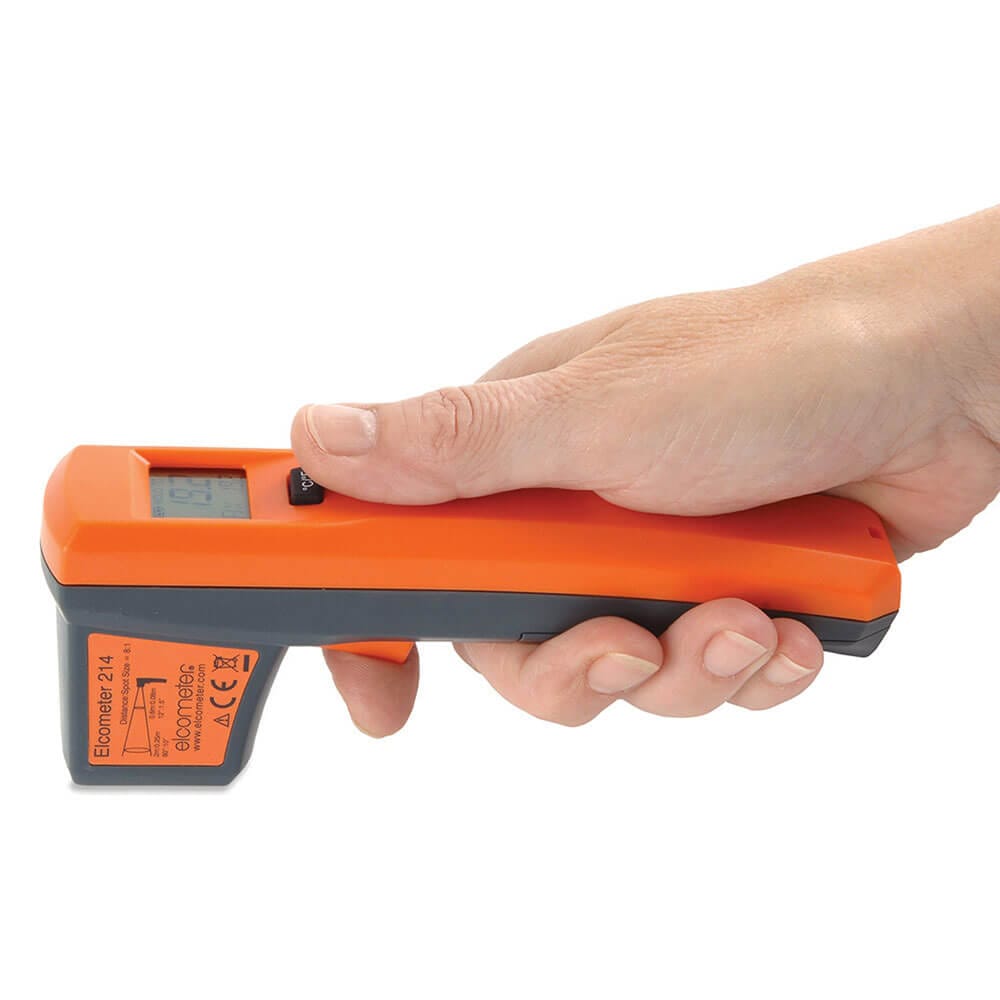

Elcometer 214L IR Digital Laser Thermometer

Description

The Elcometer 214 is a simple, easy-to-use, non-contact thermometer which safely and accurately measures surface temperature of non-reflective materials using infrared technology.

With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.

  • Non-contact technology with laser spot indicator
  • ºC / ºF user switchable
  • Fast, 1 second scanning of any surface
  • Measure objects as small as 25mm (1”)
  • Distance-to-Target Ratio of 8:1
  • Easy to read LCD display

The Elcometer 214 IR Digital Laser Thermometer has a D/T ratio (Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.

As can be seen in the diagram, if the distance from the sensor optics to the target is 200mm (8″) for example, the diameter of the measured area is 25mm (1″).

Additional information

Weight 0.113 kg
Dimensions 16.6 × 3.4 × 6.4 cm
Measuring Range

-35°C to 365°C (-31 to 689°F)

Ambient Temperature

0 to 50°C (32 to 122°F)

Resolution

0.2°C (0.5°F)

Accuracy

±1.5°C (2.7°F)

Distance-To-Target

8:1, 25mm (1”) spot size

Emissivity

Fixed at 0.95

Response Time

1 second

Battery Type

2 x LR03 (AAA)

Battery Life

14+ hours continuous use
