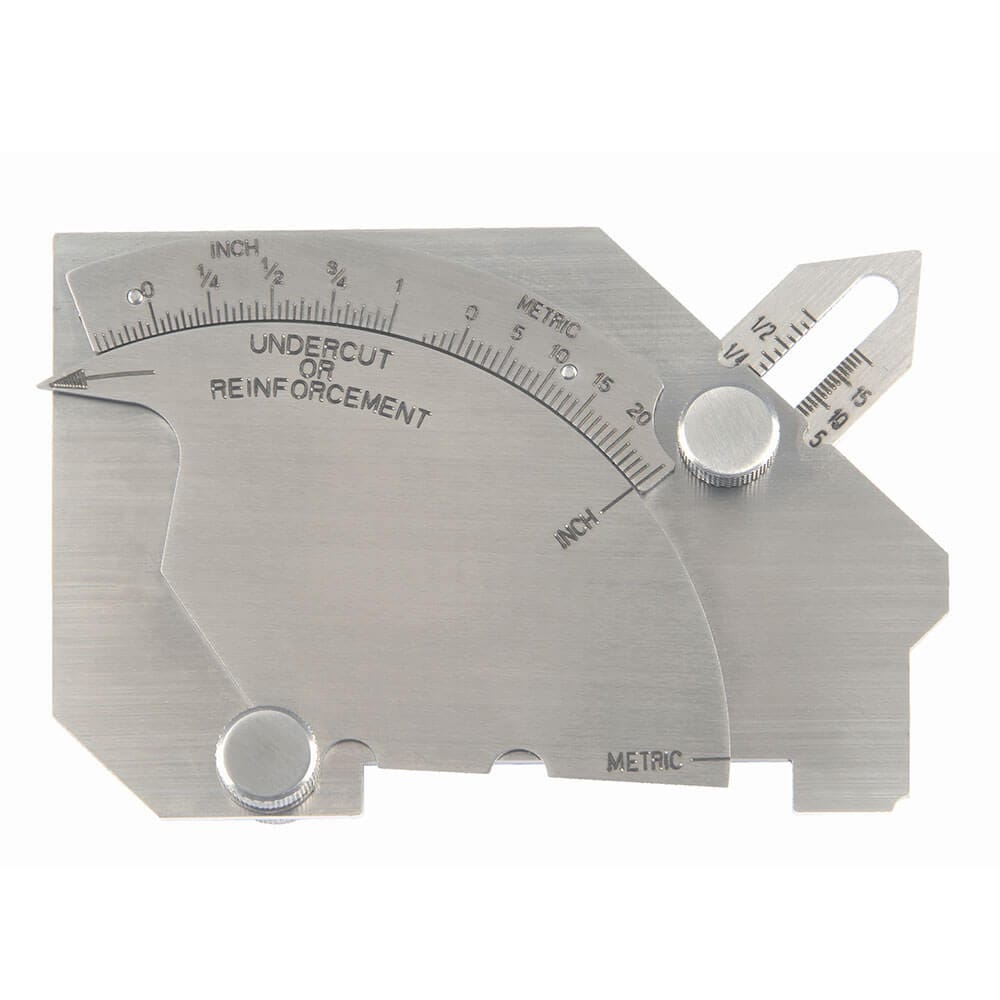

Elcometer 147 Weld Gauge

ELCOMETER 147 GAUGE WELD mengukur berbagai macam pengelasan dengan satuan unit metrik dan satuan unit imperial.

Description

ELCOMETER 147 GAUGE WELD mengukur berbagai macam pengelasan di kedua metrik dan unit imperial

Ukuran las meliputi:

  • Sudut persiapan 0 hingga 60 °
  • Misalignment/sisi singgung (tinggi – rendah)
  • Ukuran fillet weld throat
  • Panjang irisan las
  • Tes kebulatan tepi 2mm (0,79 “)
  • Kelebihan logam las (ukuran capping)
  • Kedalaman undercut
  • Kedalaman lubang
  • Pengukuran linear hingga 60mm (2 “)

Additional information

Weight 0.154 kg
Dimensions 10 × 6.8 cm
Angle of Preparation Scale

0 – 60° in 5° divisions

Misalignment Scale

0 – 25mm in 1mm divisions and 0 – 1” in 1/16” divisions

Fillet Leg & Excess Weld Scale

0 – 25mm in 1mm divisions and 0 – 1” in 1/16” divisions

Fillet Throat Scale

0 – 20mm in 1mm divisions and 0 – 3/4” in 1/16” divisions

Undercut Scale

0 – 4mm in 1mm divisions and 0 – 1/4” in 1/16” divisions
