Home / Graco / Painting Equipment / Electric / e-Xtreme EX45 Electric Airless Sprayer
extreme electric ex45

e-Xtreme EX45 Electric Airless Sprayer

Electric sprayer seri extreme ex45, bekerja dengan tenaga listrik dengan sertifikat atex cocok digunakan untuk lingkungan yang berpotensi terjadi ledakan.

Category: Electric, Graco, Painting Equipment
  • Description
  • Additional information
  • Reviews (0)

Description

Sprayer eXtreme electric beroperasi dengan sumber daya listrik yang lebih andal, khususnya eXtreme electric sprayer EX45 yang memperbaiki ketidak efisienan yang terkait dengan kompresor. Selain itu, teknologi listrik mengurangi getaran dan mencegah icing motor, membuat pekerjaan Anda berjalan lebih lancar setiap saat.

ATEX APPROVED

  • Tenaga listrik yang aman, dapat diandalkan, dan nyaman
  • Tidak ada motor udara = tidak ada masalah icing lagi
  • Secara signifikan lebih tenang jika dibandingkan dengan motor udara
  • Sumber listrik: daya 240V / 16A memastikan proses penyemprotan menghasilkan getaran rendah dan halus

Ketahui Mengapa Sprayer eXtreme Electric Sprayer EX45 adalah Solusi Listrik Anda untuk Menyemprotkan Lapisan Pelindung

Listrik

  • Tenaga listrik yang aman, andal, dan nyaman

Tidak ada lagi pembekuan

  • Tidak ada motor udara = tidak ada masalah icing lagi

Mengurangi Kebisingan

  • Secara signifikan lebih tenang jika dibandingkan dengan motor udara

Plug-in & Spray

  • Daya 240V / 16A memastikan penyemprotan berdenyut rendah dan halus

Lokasi Berbahaya yang Disetujui

  • ATEX, IECEx, dan Class 1, Div. 1*

Penghematan Energi

  • Menghemat hingga 80% dari biaya energi bila dibandingkan dengan sprayer yang dioperasikan menggunakan udara udara **

* Lihat manual produk untuk spesifik tentang persetujuan lokasi berbahaya dan untuk persyaratan kabel yang tepat.

** Studi selesai pada tekanan pompa 3500 psi (241 bar) selama 20 jam / minggu; penyemprotan 324 gal (1.226 l) dari 73% volume padatan epoksi dengan tip XHD519.

Additional information

Maximum fluid working pressure

310 bar, 31.0 MPa

Stroke length

120 mm

Maximum continuous cycle rate

44 cycles per minute

Tip Size

.021 in.

Weight

135 kg

Wetted parts

Carbon Steel, Alloy Steel, 304, 440 and 17–PH Grades of Stainless Steel, Zinc and Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE; Leather, Aluminum

Operating temperature range

-5° to 50° C

Input voltage

200–240 VAC, single phase, 50/60 Hz

Input power

2.5 kVA

Minimum Recommended generator size

5 kW

Oil capacity

0.9–1.1 liters

Oil specification

Graco part number 16W645 silicone-free ISO 220 synthetic EP gear oil

Fluid inlet size

1 in. npt(m) [also includes 1 in. nps(swivel) to 1 in. npt(m) adapter elbow]

Fluid outlet size

1/2 npt(m) [also includes 1/2 npt(f) to 3/8 npt(m) adapter]

Minimum pressure

The minimum hose pressure rating should be equal to or greater than the maximum fluid working pressure of sprayer

Minimum length

15 m

Minimum ID

10mm

Maximum resistance per ISO 8028

30,000 ohms/m

Reviews

There are no reviews yet.

Be the first to review “e-Xtreme EX45 Electric Airless Sprayer” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

  • z45 electric airless sprayer
    Read more

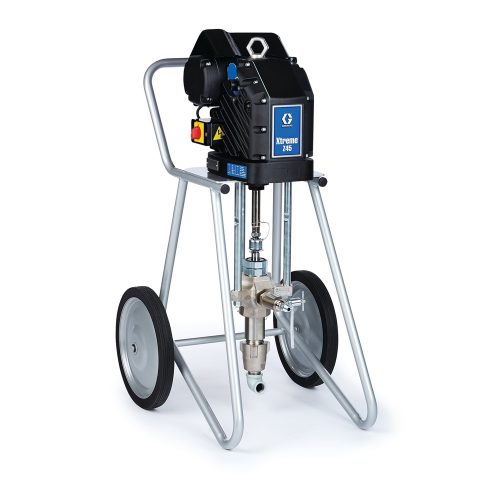

    Z45 Electric High Pressure Airless Sprayer
